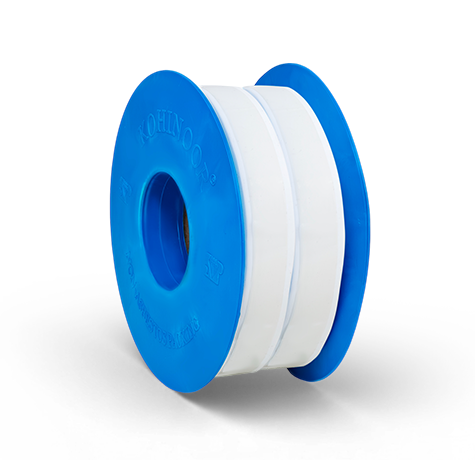

Expanded PTFE Tape[Kohinoor Style 21]

Construction: Expanded Soft packing made from a special grade PTFE resin with one side adhesive strip.
Application: This expanded soft packing fills all the voids in uneven or damaged surfaces thereby giving perfect sealing. It is chemically inert and can be used with almost all chemicals. One side of the packing has an adhesive strip hence it is very easy to install. It is widely used in place of gasket. Recommended for sealing flanges, housings of pumps, compressors & gearboxes, manholes, heat exchanger, reactors, agitators, mixers, tank lids and many other such applications.

Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-240 to 260
0-14
200
---

Standard
Packaging:
Width (mm) 5 5 7 10 12 14 14 17 19 20 20 20
Thickness (mm) 2 3 2.5 3 4 3 5 6 5 3 5 7
Length (mtrs) 30 30 30 20 10 10 10 10 5 5 5 5

Width (mm) 25 25 25 25 30 30 40 40 45 50 55 70
Thickness (mm) 1 5 7 10 3 5 3 5 3 3 3 3
Length (mtrs) 10 5 5 5 5 5 5 5 5 5 5 5

* We can also supply custom size/length as per customer's requirements.
