Pure Expanded Graphite Packing[Kohinoor Style 41]

Construction: Diagonally braided from pure expanded flexible graphite yarn.
Application: Very flexible and supple packing, excellent alternative to pre-formed graphite-rings. The benefits of this packing are low friction and excellent thermal conductivity. It can be used with steam, water, oils, alkalies, acids, solvents, paints, varnishes on pumps and valves in high temperature and high pressure environments prevailing in power plants, boiler houses, refineries, steel mills, petrochemicals industries, etc.
Available SIze: From 3mm to 45mm.
Installation: View Detail, Click Here..

Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-240 to 650
0-14
300
25

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

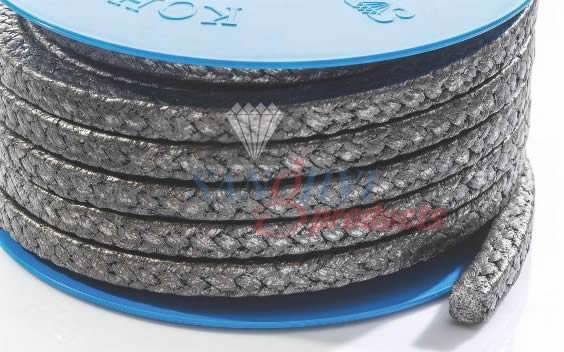

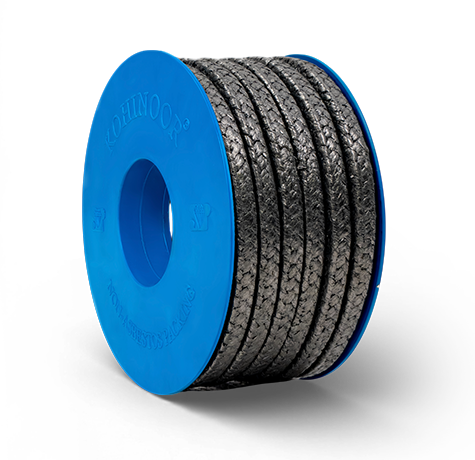

Expanded Graphite Packing[Kohinoor Style 41 SS]

Construction: Braided packing made from pure expanded flexible graphite yarn reinforced with high strength SS wire.
Application: A specially developed packing for high pressure and high temperature applications. Reinforcement of SS wire resists extrusion under high pressure. This packing has very low co-efficient of friction and has excellent heat conductivity. Widely used in valves handling gases, oils, fuels, steam, condensate, etc. It is also used in sealing of dryers, autoclaves, etc.
Available SIze: From 3mm to 45mm.
Installation: View Detail, Click Here..

Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-240 to 650
0-14
400
---

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

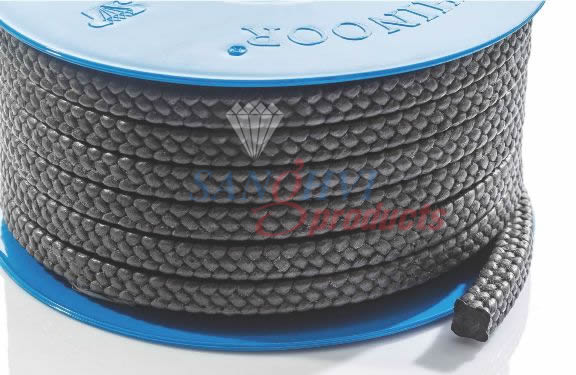

Pure Carbon Packing[Kohinoor Style 42]

Construction: High quality carbon fibre impregnated with graphite and an inert lubricant.
Application: This packing is extremely flexible and has excellent heat dissipating properties and very low coefficient of friction. It can be used for sealing boiler feed pumps, valves, mixers, etc., in pulp & paper, chemical & pharmaceutical industries, power plants, etc.
Installation: View Detail, Click Here..
Available Size: From 3mm to 45mm.

Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-240 to 600
0-14
200
20

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg
