Sanghvi products

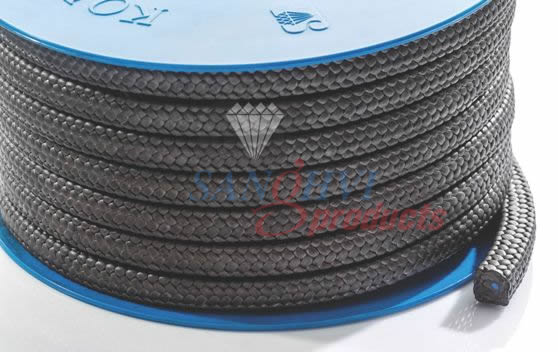

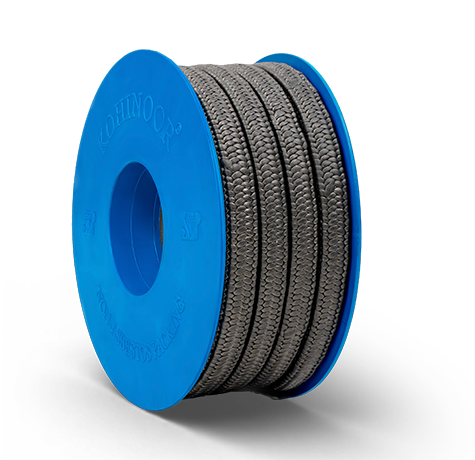

PTFE Graphite Packing[Kohinoor Style 61]

Construction: PTFE blended with graphite and lubricated with an inert high temperature lubricant.
Application: This packing is suitable for high-speed rotary applications. It can be used in contact with most media including the most aggressive. Also suitable for oxygen, paints, lacquers, varnishes. This packing is used in chemicals, petrochemicals, paper & pulp industries, textile industries, power plants, etc.
Available SIze: From 3mm to 45mm.
Installation: View Detail, Click Here..

Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-240 to 300
0-14
300
20

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

PTFE Graphite Packing[Kohinoor Style 62]

Construction: A special grade of PTFE bonded with quality graphite and lubricated with an inert high temperature lubricant.
Application: This packing is ideally well suited for high peripheral speeds and temperature. It can be used in pumps, valves, mixers, reactors, agitators, etc. This self-lubricating packing can be safely used in almost all chemical application including the most aggressive. Widely used in refineries, petrochemicals, fertilizers, textile industries, power plants, etc.
Available SIze: From 3mm to 45mm.
Installation: View Detail, Click Here..

Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-240 to 300
0-14
300
25

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

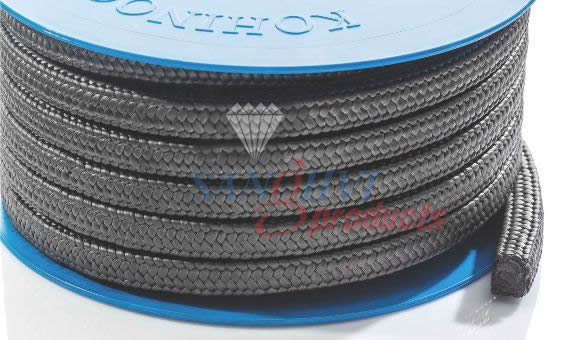

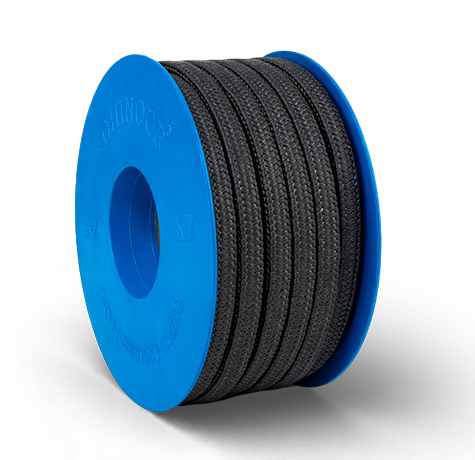

PTFE Graphite Packing[Kohinoor GP]

Construction: Braided packing made from PTFE, graphite and an inert high temperature lubricant.
Application: A cost effective and ideal replacement for asbestos based packing. It is non toxic, self lubricating and chemically inert and hence can be used against almost all media. It is highly flexible and hence it is easy to install. Widely used for moderate speed rotary application in all type of industries. It is also used in static applications.
Installation: View Detail, Click Here..
Available Size: From 6mm to 45mm.

Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-240 to 280
0-14
200
10

Standard
Packing:
6mm to 14mm
16mm to 19mm
Above 19mm
1kg
2kg2
5kg
