Sanghvi products

Valve Seal[Kohinoor Style 14]

Construction: Valve Seal is provided with double construction of 100% PTFE core with spiral wrapping of PTFE tape.
Application: The core fills all voids and confirms to uneven spindles and flanges while the spiral wrapping of PTFE tape prevents extrusion at both ends of the spindle. It is widely recommended for use on valves in various industries for obtaining practically Zero Leakage. Can also be used in place of gasket in flanged joint.


Installation: View Detail, Click Here..
Standard Packing: 3 mm - 15 mts. | 4 mm - 10 mts.
6 mm - 5 mts.   | 8 mm - 5 mts.
10 mm - 3 mts. | 12 mm - 2 mts.
Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-100 to 260
0-14
200
--

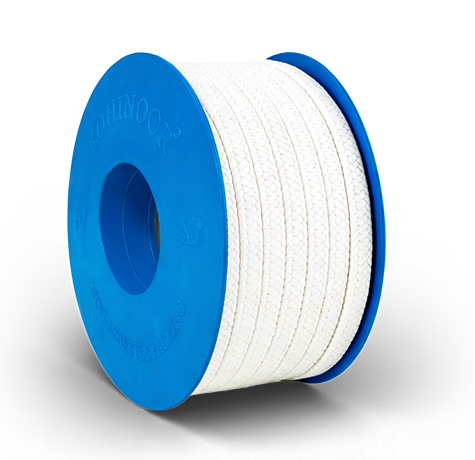

Lubricated PTFE Packing[Kohinoor Style 50]

Construction: Braided packing made from a special grade of PTFE inbuilt with an inert high temperature lubricant.
Application: This is a non toxic, chemically inert and self lubricating packing. Due to its chemical inertness it can be used against almost all media. Widely used in rotating and static applications. Excellent packing for use in food processing, pharmaceutical and chemical industries, etc.
Standard Packing: 6mm - 45mm.
Installation: View Detail, Click Here..


Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-240 to 260
0-14
75
5

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

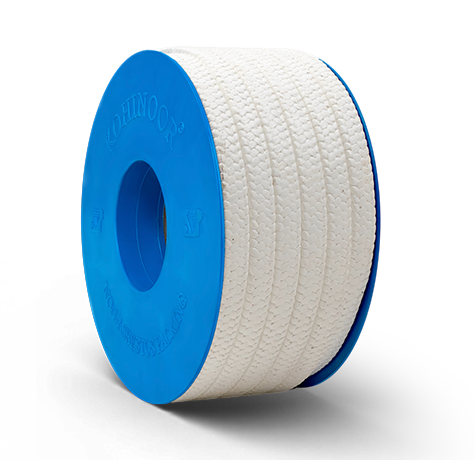

Lubricated PTFE Packing with Dispersion[Kohinoor Style 51]

Construction: High tensile yarn made from a special grade PTFE, impregnated with PTFE dispersion and lubricated with inert high temperature lubricant.
Application: This packing has particular characteristics such as low coefficient of friction and excellent tightness, making it suitable for rotary, reciprocating and static applications. It is widely used in all type of industries where purity and safety are vital criteria, such as food processing, pharmaceutical, chemical industries, etc.
Standard Packing: 3mm - 45mm.
Installation: View Detail, Click Here..


Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-200 to 260
0-14
100
8

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

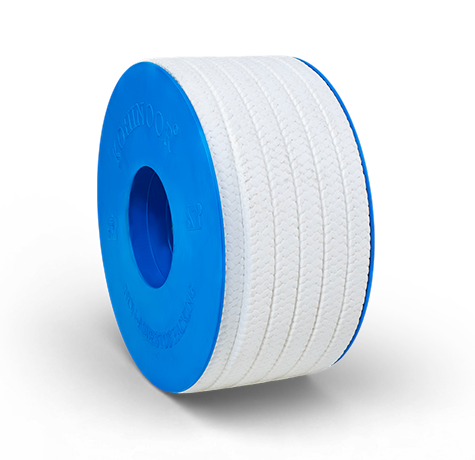

PTFE Packing with Dispersion[Kohinoor Style 52]

Construction: High tensile yarn made of special grade PTFE and impregnated with PTFE dispersion.
Application: This packing is mainly recommended where lubricant is not to be used due to danger of combustion. It is also used in pumps having low shaft speed and equipments in handling hazardous & corrosive chemicals. PTFE being chemically inert, can be used with almost all chemicals.
Installation: View Detail, Click Here..
Available SIze: From 3mm to 45mm.


Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-200 to 260
0-14
100
5

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg

PTFE 100% Packing[KOHINOOR Comm.]

Construction: This is a specially developed packing made of 100% pure PTFE unsintered tape.
Application: It is a cost-effective replacement of PTFE impregnated asbestos packings. PTFE 100% square packing is a self-lubricating, chemically inert, non-toxic, and a non-hazardous material. It is very flexible packing and provides more efficient sealing with very low friction characteristics. This packing can be used against corrosive chemicals, solvents, oils and petroleum by products and oxygen service widely used for water handling equipments, liquid oxygen pumps, valves etc.

Installation: View Detail, Click Here..
Available Size: From 6mm to 25mm
Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-100 to 260
0-14
50
5

Standard
Packing:
6mm to 14mm
16mm to 19mm
Above 19mm
1kg
2kg2
5kg
