Sanghvi products

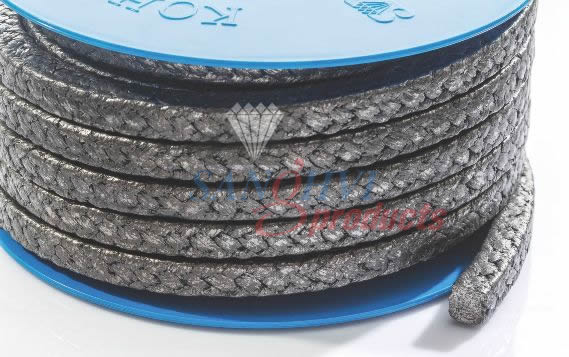

Pure Expanded Graphite Packing[Kohinoor Style 41]

Construction: Diagonally braided from pure expanded flexible graphite yarn.
Application: Very flexible and supple packing, excellent alternative to pre-formed graphite-rings. The benefits of this packing are low friction and excellent thermal conductivity. It can be used with steam, water, oils, alkalies, acids, solvents, paints, varnishes on pumps and valves in high temperature and high pressure environments prevailing in power plants, boiler houses, refineries, steel mills, petrochemicals industries, etc.
Available SIze: From 3mm to 45mm.
Installation: View Detail, Click Here..

Service
Parameters:
Temp.
pH
Pressure
Velocity
C
Range
Kg/cm2
Mtrs/sec
-240 to 650
0-14
300
25

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg
