PTFE Thread Seal Tapes
Construction:
PTFE Thread Seal Tape is a premium sealing solution designed for leak-proof jointing in threaded pipe connections. Manufactured from 100% virgin PTFE, it provides excellent chemical resistance, thermal stability, and long-lasting performance.
Installation
| Part No. | Width | Thickness | Density |
|---|---|---|---|
| SP 08 | 0.5", 0.75" & 1 | 0.0030" | 0.65 to 0.95 gm/cc |
| SP 10 | 0.5", 0.75" & 1 | 0.0035" | 0.85 to 1.15 gm/cc |
| SP 12 | 0.5", 0.75" & 1 | 0.0035" | 1.05 to 1.35 gm/cc |
| SP 14 | 0.5", 0.75" & 1 | 0.0035" | 1.25 to 1.55 gm/cc |
| SP 16 | 0.5", 0.75" & 1 | 0.0035" | 1.6 gm/cc |

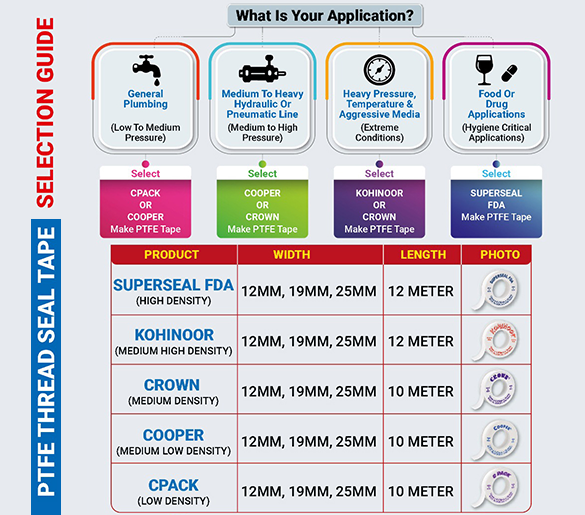

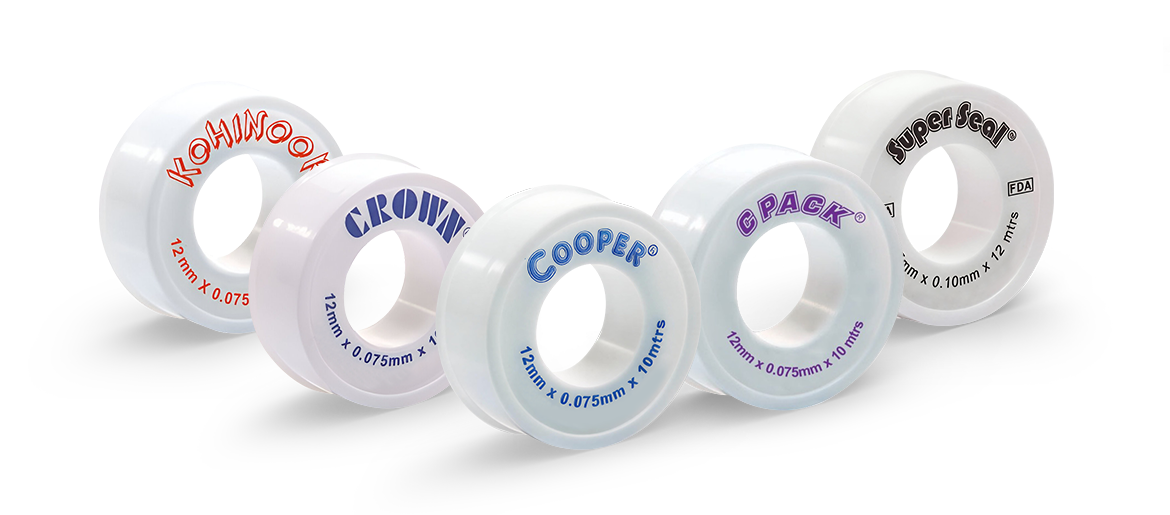

| Brand Name | Width | Length | Thickness |
|---|---|---|---|
| Super Seal FDA | 12.5, 19 & 25 mm | 12 Mtrs. | 0.075 mm |
| Kohinoor | 12.5, 19 & 25 mm | 12 Mtrs. | 0.075 mm |
| Crown | 12, 19 & 25 mm | 10 Mtrs. | 0.075 mm |
| Cooper | 12, 19 & 25 mm | 10 Mtrs. | 0.075 mm |
|
Standard Packing |
mm.(Width) | 12/12.5 | 19 | 25 |
|---|---|---|---|---|
| pcs. | 200 | 100 | 100 |
Physical Properties:
- Density: 0.2 – 1.2 g/cm³ (standard tapes ~0.30 g/cm³, high-density tapes up to 1.2 g/cm³)
- Thickness: 0.075 – 0.2 mm (standard ~0.075 mm)
- Width: 12 mm, 19 mm, 25 mm (other sizes available)
- Length per Roll: 10 m to 50 m
- Sealing Pressure upto 30Bar
