Speciallity Packing

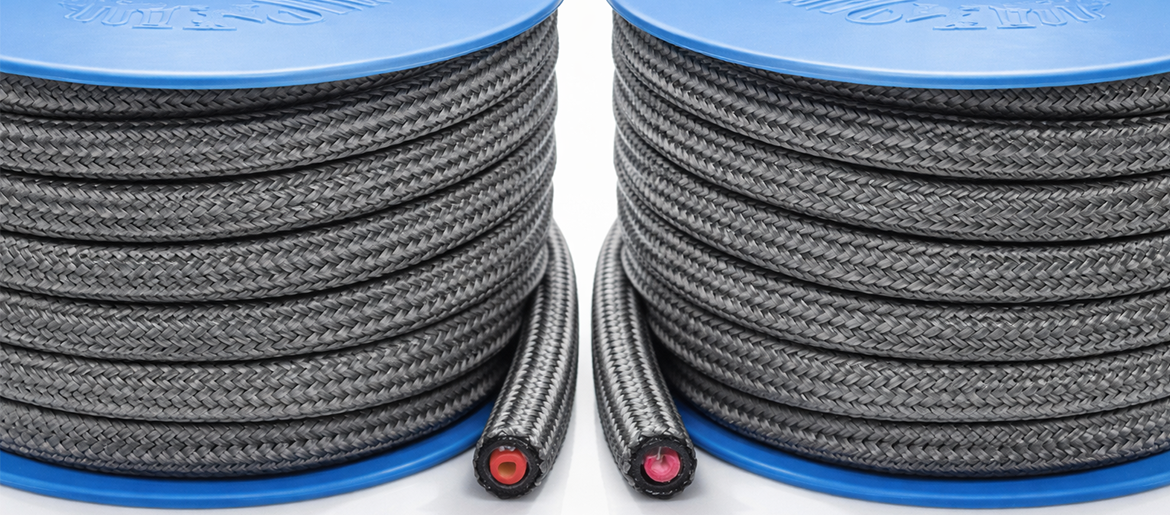

Hollow Core / Solid Core Packing
Construction:
A packing with a center of hollow silicon core or solid silicon cord braided around by yarn of style 51, 61, 71, 82 & 83.

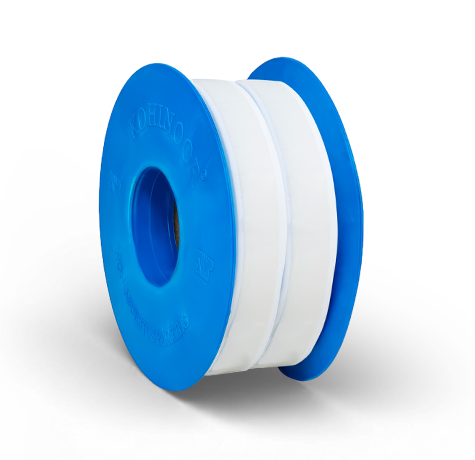

TFE Graphite Rain-Forced with Aramid Fibre [Style 71 GW]
Construction:
Expanded Soft packing made from a special grade PTFE resin with one side adhesive strip.
| Service Parameters: | |||
|---|---|---|---|
| Temp. | pH | Pressure | Velocity |
| � C | Range | Kg/cm2 | Mtrs/sec |
| -100 to 260 | 0-14 | 200 | --- |

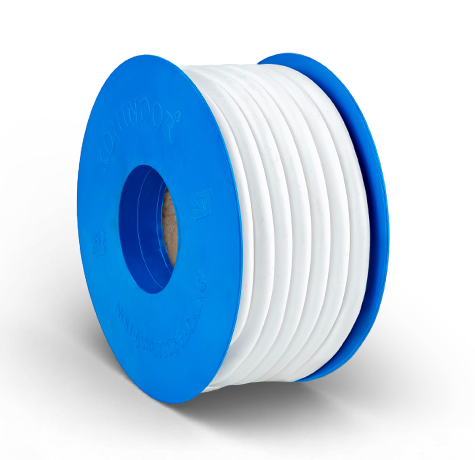

PTFE Graphite Rain-Forced with Carbon Fibre [Style 42 GW]
Construction:
Valve Seal is provided with double construction of 100% PTFE core with spiral wrapping of PTFE tape.
| Service Parameters: | |||
|---|---|---|---|
| Temp. | pH | Pressure | Velocity |
| � C | Range | Kg/cm2 | Mtrs/sec |
| -100 to 260 | 0-14 | 200 | --- |

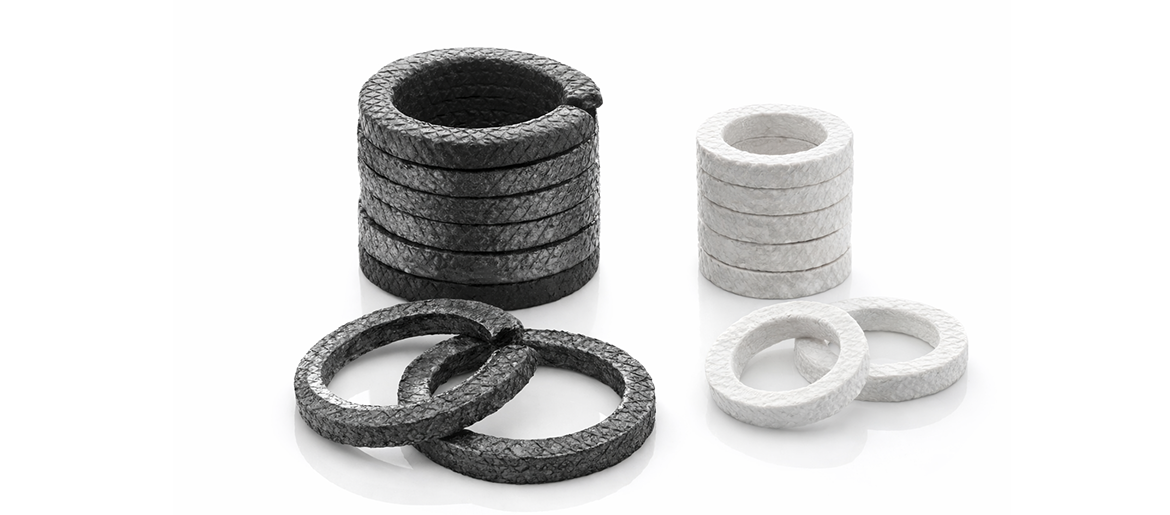

Pre Formed Ring Set
Construction:
Die-molded braided compression packing rings with an oblique cut available in Style 41, 42, 51, 61, 71, 82 & 83.
PTFE/ PTFE Graphite putty
Construction:
Malleable paste made from special grade PTFE or special grade PTFE bonded with Graphite, and a balanced compound of oils, greases and binders.
| Service Parameters: | ||||
|---|---|---|---|---|
| Temp. | pH | Pressure | Velocity | |
| � C | Range | Kg/cm2 | Mtrs/sec | |
| PTFE Putty | -100 to 260 | 0-14 | 100 | 5 |
| PTFE Graphite Putty | -100 to 300 | 0-14 | 100 | 12 |
